High Speed Pneumatic Feeder

  • 1
  • 2
  • 3

Brand Name : DURA

Model Number : AF-1C~14C

Certification : As Per Customer's Request

Place of Origin : Jiangsu, China

MOQ : 1 SET

Price : to be negotiated

Payment Terms : L/C, D/P, T/T

Supply Ability : 1000 Sets Per Month

Delivery Time : Shipped in 15 Days After Payment

Packaging Details : Carton Box, Wooden Cases/Pallets, Plywood Cases/Pallets.

Name : High Speed Pneumatic Feeder

Voltage : Required

Dimension(L*W*H) : Various to Different Machine Models

Weight : 8.8-200

Type : Feeder Machine

Power : Various to Different Machine Models

Use : Wire

Warranty : One Year After the Date of Shipment

Contact Now

High Speed Pneumatic Feeder

1. Type of feeder: Standard type, E-type, Standard & R type; E & R type
2. Applicable feeding material: metal strip, tape, plastic strip
3. A buffer is equipped on the models over AF-3C.

Air feeders, as a kind of automatic feeding device, are driven with compressed air. They are widely applied for press, press machine or punch, and it‘s for all industrial production.

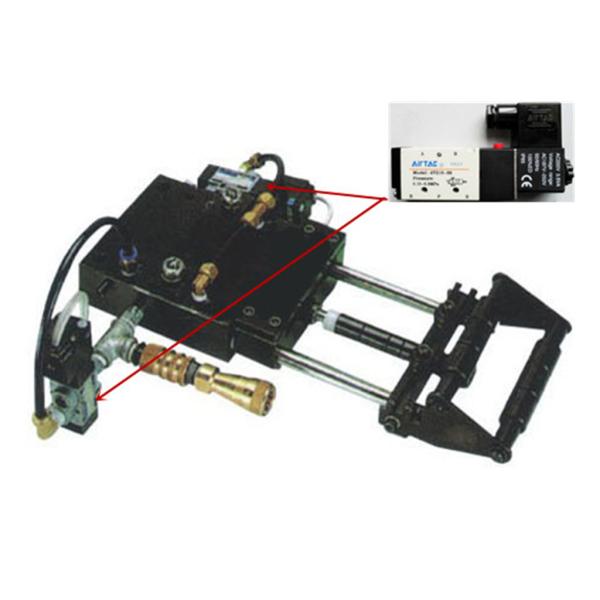

Except the Standard type, other variations are all available upon request. E-type air feeder (instead of pilot lever, fixed with a pilot electromagnetic valve), Standard & R type air feeder (Based on standard type, added with an electromagnetic valve to make the fixed clamp carry a releasing function ) and E & R type (Both electromagnetic pilot valve and releasing valves are fixed ) can be supplied according to the real applications to different press machines.

If a high precision feeding is needed, an electromagnetic valve for the fixed clamp’s releasing function is required; if a shorter stroke or long distance feed is happened to the press process, an electromagnetic pilot valve must be fixed.

Technical Specifications

Model AF-1C AF-2C AF-3C AF-4C AF-5C AF-6C AF-7C AF-8C AF-10C AF-12C AF-14C
Width Max.(mm) 50 65 80 100 150 200 250 300 400 500 600
Length Max.(mm) 50 80 80 130 150 200 250 300 400 500 600
Thickness(mm) 0.5 0.8 1.2 1.5 2 2 2.5 2.5 3 3 3.5
Air press(kg/cm2) 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5 4.5
Speed Max.(times/min) 200 160 150 93 80 60 48 40 30 23 20
Weight(kg) 8.8 9.6 12.8 19.6 38.4 52.4 80 95 178 240

200
